Installation & Setup

1️. Clone the repository

bash-git clone https://github.com/your-username/delivery-app.git cd delivery-app

2. Install dependencies

cd client npm install

cd ../server npm install

3. Environment Variables

Create .env file inside server folder:

PORT=5000 MONGO_URI=your_mongodb_connection JWT_SECRET=your_secret_key CLIENT_URL=http://localhost:3000

4. Run the project

Start backend

cd server npm run dev

Start frontend

cd client npm start

User Interaction with the System

QuickServe is designed around three different user roles:

1. Customer
2. Restaurant Owner
3. Delivery Partner

Each role has a dedicated dashboard and specific functionalities.

1. Customer Module

Step 1: Registration/Login

The customer creates an account using:

• Name
• Email
• Mobile Number
• Password

After successful authentication, a JWT token is generated, allowing access to protected pages.

Expected Output

• User is logged in successfully.
• Customer dashboard opens.
• Authentication token is securely stored.

Step 2: Browse Restaurants

The customer can:

• View nearby restaurants
• Search restaurants
• Browse restaurant menus
• View food categories

Expected Output

• List of restaurants displayed.
• Food items shown with:
• Image
• Price
• Category
• Veg/Non-Veg

Step 3: Select Food Items

Customer chooses food items.

Actions include:

• Add to cart
• Increase quantity
• Remove items
• Continue shopping

Expected Output

• Selected items appear in the cart.
• Total amount is automatically calculated.

Step 4: Place Order

Customer enters:

• Delivery Address
• Payment Method

Clicks:

Place Order

Expected Output

• Order saved in MongoDB.
• Restaurant owner instantly receives notification.
• Customer sees order confirmation.

Step 5: Track Order

Customer can track:

• Pending
• Accepted
• Preparing
• Out for Delivery
• Delivered

These updates happen in real time using Socket.io.

Expected Output

The order status changes automatically without refreshing the page.

Example:

Pending

↓

Accepted

↓

Preparing

↓

Out for Delivery

↓

Delivered

2. Restaurant Owner Module

Restaurant owners manage their business through an Owner Dashboard.

Step 1: Login

Owner logs in securely.

Expected Output

Owner Dashboard opens.

Step 2: Create Restaurant

Owner enters:

• Restaurant Name
• Address
• Description
• Image

Expected Output

Restaurant becomes visible to customers.

Step 3: Add Food Items

Owner adds:

• Food Name
• Price
• Category
• Veg/Non-Veg
• Food Image

Expected Output

New food item appears instantly in the restaurant menu.

Step 4: Manage Orders

Owner receives new orders in real time.

Options include:

• Accept Order
• Reject Order

Expected Output

Customer immediately sees the updated order status.

Step 5: Update Order Status

Owner updates:

• Preparing
• Ready for Pickup

Expected Output

Delivery partner receives the new delivery request automatically.

3. Delivery Partner Module

Delivery partners complete the delivery process.

Step 1: Login

Delivery partner signs in.

Expected Output

Delivery Dashboard opens.

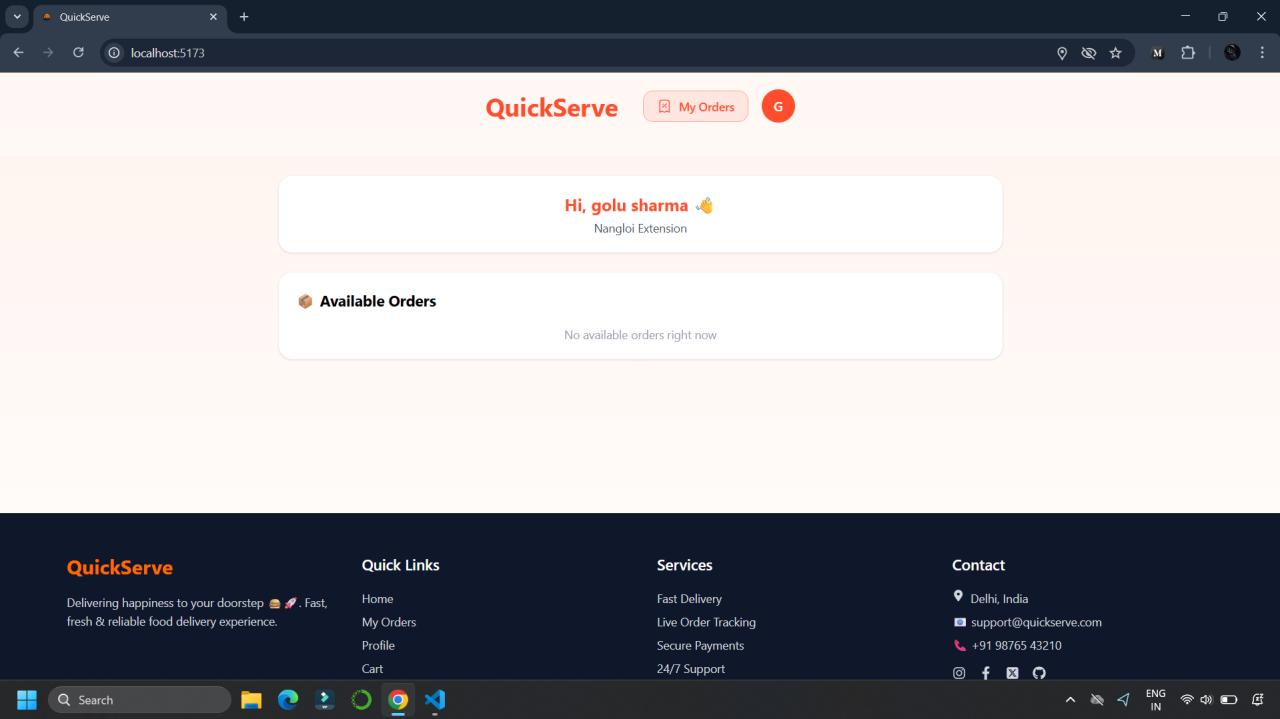

Step 2: Receive Delivery Assignment

Available delivery requests appear automatically.

Expected Output

New orders are displayed instantly using Socket.io.

Step 3: Accept Delivery

Delivery partner accepts the assigned order.

Expected Output

Customer can see:

Delivery Partner Assigned

Step 4: Deliver Order

After reaching the customer:

Delivery partner clicks

Delivered

Expected Output

Order status becomes:

Delivered

Customer and restaurant owner receive the update instantly.

Real-Time User Interaction

QuickServe uses Socket.io for live communication.

Example workflow:

Customer Places Order
        │
        ▼
Restaurant Receives Order
        │
Accepts Order
        │
        ▼
Customer Status Updated
        │
        ▼
Delivery Partner Gets Assignment
        │
        ▼
Partner Accepts Delivery
        │
        ▼
Customer Sees Live Tracking
        │
        ▼
Partner Marks Delivered
        │
        ▼
Order Completed

No page refresh is required.

Key Usages

Customer

• Register/Login
• Browse restaurants
• Search food
• Add items to cart
• Place orders
• Track orders in real time
• View order history
• Manage profile

Restaurant Owner

• Create restaurant
• Edit restaurant details
• Add food items
• Update menu
• Accept/Reject orders
• Update order status
• View customer orders

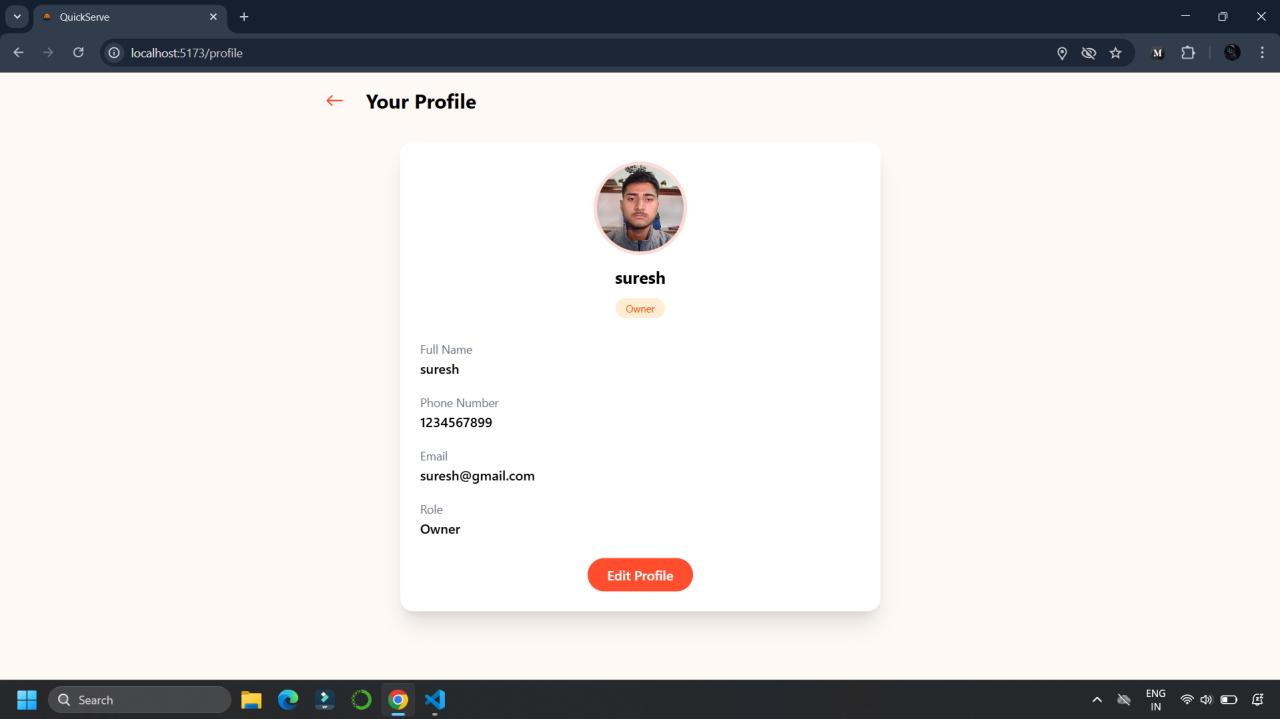

• Manage profile

Delivery Partner

• Login securely
• View available deliveries
• Accept delivery requests
• Update delivery status
• Mark deliveries as completed
• Manage profile

Expected Outputs

User ActionExpected OutputUser LoginSecure authentication with JWTBrowse RestaurantsRestaurant list displayedAdd FoodFood item appears in menuAdd to CartCart updates automaticallyPlace OrderOrder stored in MongoDBAccept OrderCustomer sees "Accepted" statusUpdate OrderReal-time status updatesAssign DeliveryDelivery partner receives notificationComplete DeliveryOrder marked as DeliveredLogoutUser session ends securely

Overall Workflow

Customer Login
       │
       ▼
Browse Restaurants
       │
       ▼
Select Food
       │
       ▼
Add to Cart
       │
       ▼
Place Order
       │
       ▼
Restaurant Receives Order
       │
       ▼
Owner Accepts Order
       │
       ▼
Food Preparation
       │
       ▼
Delivery Partner Assigned
       │
       ▼
Delivery Accepted
       │
       ▼
Order Delivered
       │
       ▼
Customer Receives Delivery

Hardware Requirements

Component Minimum Requirement Recommended

ProcessorIntel Core i3 (6th Gen) / AMD Ryzen 3Intel Core i5/i7 or AMD Ryzen 5+

RAM4 GB8 GB or higherStorage20 GB Free Disk Space50 GB SSD Free SpaceDisplay1366 × 7681920 × 1080 (Full HD)InternetBroadband ConnectionHigh-Speed Broadband

Software Requirements

ComponentVersionOperating SystemWindows 10/11, Ubuntu 20.04+, macOS Monterey or laterRuntime EnvironmentNode.js v20.x LTS (or later)Package Managernpm v10.x or Yarn v1.22+Programming LanguageJavaScript (ES6+)FrontendReact.js 18.xBackendNode.js + Express.jsDatabaseMongoDB Community Server 7.x / MongoDB AtlasDatabase ODMMongoose 8.xStyling FrameworkTailwind CSS 3.xState ManagementRedux Toolkit 2.xHTTP ClientAxios 1.xReal-Time CommunicationSocket.io 4.xAuthenticationJWT + OTP VerificationVersion ControlGit 2.40+IDEVisual Studio Code 1.90+BrowserGoogle Chrome, Microsoft Edge, Mozilla Firefox

Runtime Environment

ComponentValueRuntimeNode.jsRuntime Versionv20.x LTSJavaScript EngineGoogle V8ServerExpress.jsClient RuntimeReact.js

Memory Requirements

ResourceRequirementMinimum RAM4 GBRecommended RAM8 GBServer Memory512 MB – 2 GBBrowser MemoryApproximately 300–500 MB during execution

Storage Requirements

ResourceRequirementProject Source Code~300 MBNode Modules700 MB – 1.5 GBMongoDB DatabaseDepends on stored data (typically 100 MB+)Free Disk SpaceMinimum 20 GB

Development Tools

• Visual Studio Code
• Git & GitHub
• Postman (API Testing)
• MongoDB Compass
• MongoDB Atlas
• npm
• Chrome DevTools

Network Requirements

• Internet connection for:
• MongoDB Atlas (if cloud-hosted)
• npm package installation
• GitHub repository access
• Default Development Ports:
• Frontend (React/Vite): 5173
• Backend (Express): 5000
• MongoDB: 27017 (Local)

Browser Compatibility

• Google Chrome (Recommended)
• Microsoft Edge
• Mozilla Firefox
• Safari (macOS)

Typical Development Environment

ComponentSpecificationOperating SystemWindows 11 (64-bit)ProcessorIntel Core i5RAM8 GBStorage256 GB SSDRuntimeNode.js v20.x LTSIDEVisual Studio CodeDatabaseMongoDB AtlasBrowserGoogle Chrome
